 W-25(Helical Worm motor)
 HORIZONTAL TYPE
TYPE
OUTPUT
RATION
L1
L
¨ªA
WEIGHT(KG)
W25
0.2kw(1/4HP)
1/75,90,120,150,180
224
410
145
18
0.4kw(1/2HP)
1/40,50,60
234
420
145
23
0.75kw(1HP)
1/10,20,30
269
455
158
28

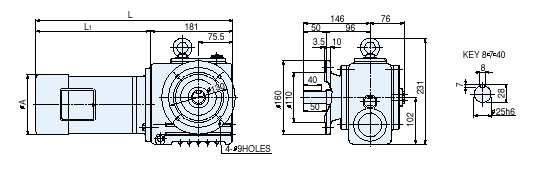

 HOLLOW SHAFT TYPE
 VERTICAL TYPE
TYPE
OUTPUT
RATION
L1
L
¨ªA
WEIGHT(KG)
W25
0.2kw(1/4HP)
1/75,90,120,150,180
224
410
145
18
0.4kw(1/2HP)
1/40,50,60
234
420
145
23
0.75kw(1HP)
1/10,20,30
269
455
158
28
 W-25(Line power)

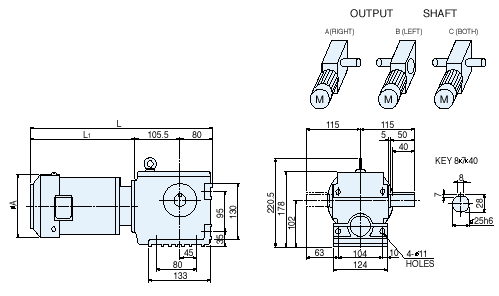

 HORIZONTAL TYPE
TYPE
DIMENSION(mm)
a
a2
a3
b1
b2
e
f2
f3
h
i
L
L1
O
p1
p2
q1
q2
W25
104
45
35
80
95
124
133
115
102
63
300.5
115
115
220.5
178
105.5
80
TYPE
DIMENSION(mm)
s
w
d
t
u
qk
k
dl
d1
t1
u1
qk1
k1
dl1
W25
11
5
25
8
7
40
50
28
16
5
5
36
40
18.3

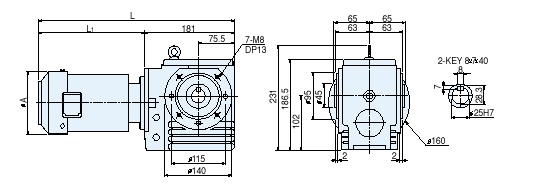

 VERTICAL TYPE
TYPE
DIMENSION(mm)
a1
a2
b
c
d
f1
f2
h
i1
i2
L
L1
O
p1
p2
W25
181
75.5
110
160
130
10
3.5
102
186.5
231
296
115
76
96
146
TYPE
DIMENSION(mm)
r
s
t
u
dl
k
qk
s1
t1
u1
dl1
k1
qk1
W25
9
25
8
7
40
50
28.3
16
5
5
36
40
18.3
