 W-70(Helical Worm motor) |
 |
|

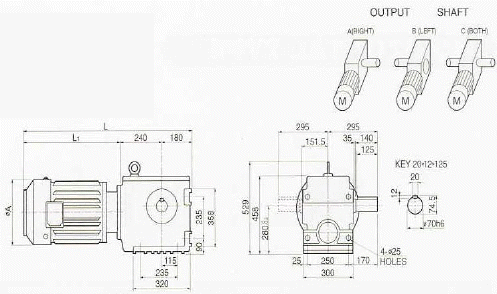

 HORIZONTAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W70 |
3.7kw(5HP) |
1/75,90,120,150,180 |
336 |
757 |
229 |
214 |
|
5.5kw(7.5HP) |
1/40,50,60 |
425 |
846 |
248 |
231 |
|
7.5kw(10HP) |
1/10,20,30 |
447 |
868 |
248 |
238 |
|
|

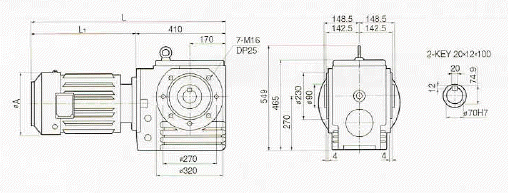

| HOLLOW SHAFT TYPE |
|
 |
|

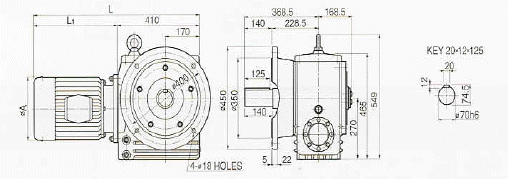

| VERTICAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W70 |
3.7kw(5HP) |
1/75,90,120,150,180 |
336 |
750 |
229 |
236 |
|
5.5kw(7.5HP) |
1/40,50,60 |
425 |
839 |
248 |
253 |
|
7.5kw(10HP) |
1/10,20,30 |
447 |
861 |
248 |
260 |
|
|
|
| W-70(Line power) |
|

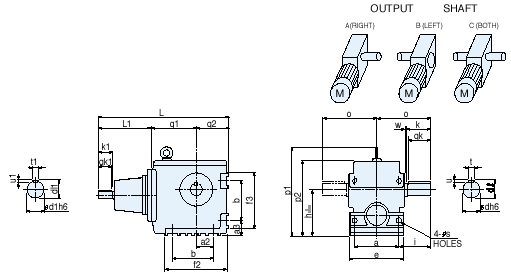

| HORIZONTAL TYPE |
|
 |
|
|
TYPE |
DIMENSION(mm) |
|
a |
a2
a3 |
b1
b2 |
e |
f2
f3 |
h |
i |
L |
L1 |
O |
p1
p2 |
q1
q2 |
|
W70 |
250 |
115
90 |
235 |
300 |
351
320 |
280 |
170 |
460 |
220 |
295 |
529
458 |
240
180 |
|
|
|
TYPE |
DIMENSION(mm) |
|
s
w |
d |
t
u |
qk |
k |
dl |
d1 |
t1
u1 |
qk1 |
k1 |
dl1 |
|
W70 |
25
7 |
70 |
20
12 |
125 |
140 |
74.5 |
40 |
12
8 |
70 |
80 |
43.3 |
|
|

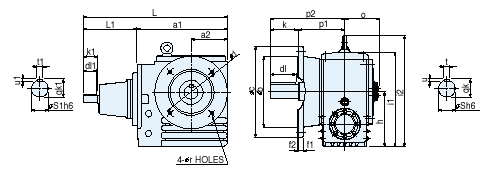

| VERTICAL TYPE |
|
 |
|
TYPE |
DIMENSION(mm) |
a1
a2 |
b |
c |
d |
f1
f2 |
h |
i1
i2 |
L |
L1 |
O |
p1 |
p2 |
W70 |
410
170 |
350 |
450 |
400 |
22
5 |
270 |
465
549 |
630 |
220 |
142.5 |
228 |
368 |
|
|
TYPE |
DIMENSION(mm) |
r |
s |
t
u |
dl |
k |
qk |
s1 |
t1
u1 |
dl1 |
k1 |
qk1 |
W70 |
18 |
70 |
20
12 |
125 |
140 |
74.9 |
40 |
12
8 |
70 |
80 |
43.3 |
|
|
|
|
|
