 W-60(Helical Worm motor) |
 |
|

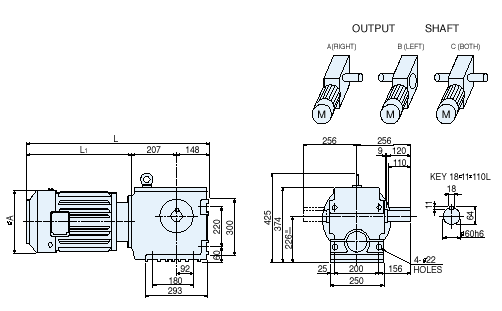

 HORIZONTAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W60 |
2.2kw(3HP) |
1/75,90,120,150,180 |
295 |
640 |
229 |
136 |
|
3.7kw(5HP) |
1/40,50,60 |
325 |
670 |
229 |
144 |
|
5.5kw(7.5HP) |
1/10,20,30 |
418 |
763 |
248 |
161 |
|
|

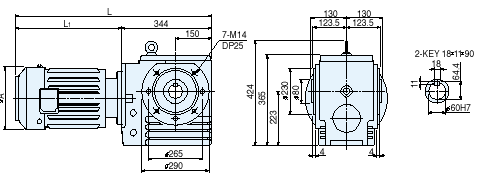

| HOLLOW SHAFT TYPE |
|
 |
|
| VERTICAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W60 |
2.2kw(3HP) |
1/75,90,120,150,180 |
295 |
639 |
229 |
154 |
|
3.7kw(5HP) |
1/40,50,60 |
325 |
669 |
229 |
162 |
|
5.5kw(7.5HP) |
1/10,20,30 |
418 |
762 |
248 |
179 |
|
|
|
| W-60(Line power) |
|
| HORIZONTAL TYPE |
|
 |
|
|
TYPE |
DIMENSION(mm) |
|
a |
a2
a3 |
b1
b2 |
e |
f2
f3 |
h |
i |
L |
L1 |
O |
p1
p2 |
q1
q2 |
|
W60 |
200 |
92
60 |
180
220 |
250 |
293
260 |
226 |
156 |
535 |
180 |
256 |
425
374 |
207
148 |
|
|
|
TYPE |
DIMENSION(mm) |
|
s
w |
d |
t
u |
qk |
k |
dl |
d1 |
t1
u1 |
qk1 |
k1 |
dl1 |
|
W60 |
22
9 |
60 |
18
11 |
110 |
120 |
64 |
32 |
10
8 |
50 |
60 |
35.3 |
|
|

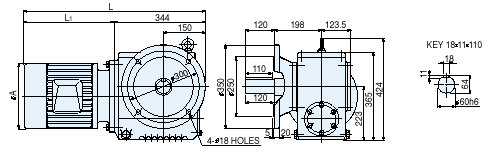

| VERTICAL TYPE |
|
 |
|
TYPE |
DIMENSION(mm) |
a1
a2 |
b |
c |
d |
f1
f2 |
h |
i1
i2 |
L |
L1 |
O |
p1 |
p2 |
W60 |
344
150 |
250 |
350 |
300 |
20
5 |
223 |
365
424 |
524 |
180 |
123.5 |
198 |
318 |
|
|
TYPE |
DIMENSION(mm) |
r |
s |
t
u |
dl |
k |
qk |
s1 |
t1
u1 |
dl1 |
k1 |
qk1 |
W60 |
18 |
60 |
18
11 |
110 |
120 |
64.4 |
32 |
10
8 |
50 |
60 |
35.3 |
|
|
|
|
|
