 W-35(Helical Worm motor) |
 |
|
 HORIZONTAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W35 |
0.75kw(1HP) |
1/75,90,120,150,180 |
269 |
510 |
158 |
43 |
|
1.5kw(2HP) |
1/40,50,60 |
334 |
575 |
192 |
49 |
|
2.2kw(3HP) |
1/10,20,30 |
295 |
536 |
229 |
58 |
|
|
| HOLLOW SHAFT TYPE |
|
 |
|
| VERTICAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W35 |
0.75kw(1HP) |
1/75,90,120,150,180 |
269 |
507 |
158 |
46 |
|
1.5kw(2HP) |
1/40,50,60 |
334 |
572 |
192 |
52 |
|
2.2kw(3HP) |
1/10,20,30 |
295 |
533 |
229 |
61 |
|
|
|

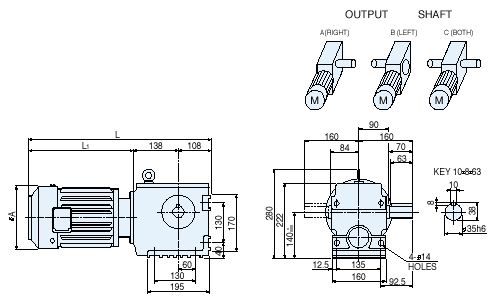

| W-35(Line power) |
|
| HORIZONTAL TYPE |
|
 |
|
|
TYPE |
DIMENSION(mm) |
|
a |
a2
a3 |
b1
b2 |
e |
f2
f3 |
h |
i |
L |
L1 |
O |
p1
p2 |
q1
q2 |
|
W35 |
135 |
60
40 |
130 |
160 |
195
170 |
140 |
92.5 |
366 |
120 |
160 |
285
227 |
138
108 |
|
|
|
TYPE |
DIMENSION(mm) |
|
s
w |
d |
t
u |
qk |
k |
dl |
d1 |
t1
u1 |
qk1 |
k1 |
dl1 |
|
W35 |
14
7 |
35 |
10
8 |
63 |
70 |
38 |
19 |
6
6 |
36 |
40 |
21.8 |
|
|

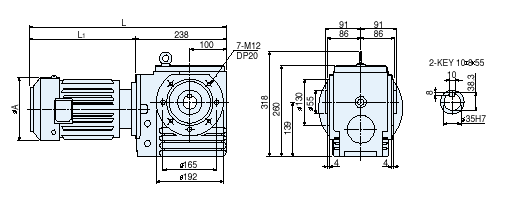

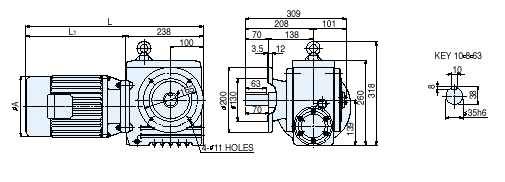

| VERTICAL TYPE |
|
 |
|
TYPE |
DIMENSION(mm) |
a1
a2 |
b |
c |
d |
f1
f2 |
h |
i1
i2 |
L |
L1 |
O |
p1 |
p2 |
W35 |
238
100 |
130 |
200 |
165 |
12
3.5 |
139 |
260
318 |
358 |
120 |
101 |
138 |
208 |
|
|
TYPE |
DIMENSION(mm) |
r |
s |
t
u |
dl |
k |
qk |
s1 |
t1
u1 |
dl1 |
k1 |
qk1 |
W35 |
11 |
35 |
10
8 |
63 |
70 |
38.8 |
19 |
6
6 |
36 |
40 |
21.8 |
|
|
|
|
|
