 W-45(Helical Worm motor) |
 |
|
 HORIZONTAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W45 |
1.5kw(2HP) |
1/75,90,120,150,180 |
309 |
596 |
192 |
79 |
|
2.2kw(3HP) |
1/40,50,60 |
295 |
582 |
229 |
88 |
|
3.7kw(5HP) |
1/10,20,30 |
325 |
612 |
229 |
96 |
|
|

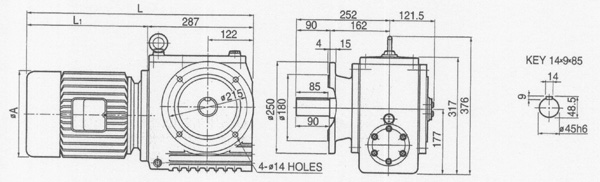

| HOLLOW SHAFT TYPE |
|
 |
|
| VERTICAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W45 |
1.5kw(2HP) |
1/75,90,120,150,180 |
309 |
601 |
192 |
87 |
|
2.2kw(3HP) |
1/40,50,60 |
295 |
587 |
229 |
96 |
|
3.7kw(5HP) |
1/10,20,30 |
325 |
617 |
229 |
104 |
|
|
|

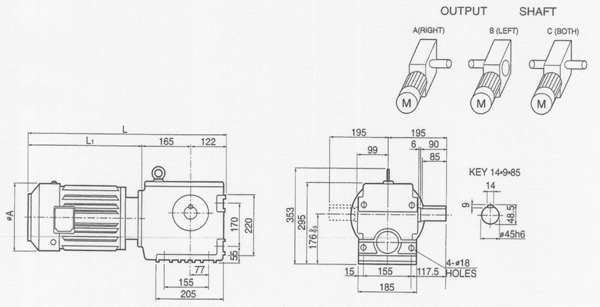

| W-45(Line power) |
|
| HORIZONTAL TYPE |
|
 |
|
|
TYPE |
DIMENSION(mm) |
|
a |
a2
a3 |
b1
b2 |
e |
f2
f3 |
h |
i |
L |
L1 |
O |
p1
p2 |
q1
q2 |
|
W45 |
155 |
77
55 |
155 |
185 |
224
227 |
176 |
151.5 |
427 |
140 |
229 |
353
295 |
165
122 |
|
|
|
TYPE |
DIMENSION(mm) |
|
s
w |
d |
t
u |
qk |
k |
dl |
d1 |
t1
u1 |
qk1 |
k1 |
dl1 |
|
W45 |
18
6 |
45 |
14
9 |
85 |
90 |
48.5 |
28 |
8
7 |
40 |
50 |
31.3 |
|
|

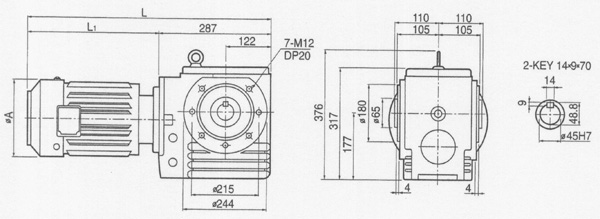

| VERTICAL TYPE |
|
 |
|
TYPE |
DIMENSION(mm) |
a1
a2 |
b |
c |
d |
f1
f2 |
h |
i1
i2 |
L |
L1 |
O |
p1 |
p2 |
W45 |
287
122 |
180 |
250 |
215 |
15
4 |
177 |
317
376 |
427 |
140 |
121.5 |
162 |
252 |
|
|
TYPE |
DIMENSION(mm) |
r |
s |
t
u |
dl |
k |
qk |
s1 |
t1
u1 |
dl1 |
k1 |
qk1 |
W45 |
14 |
45 |
14
9 |
85 |
90 |
48.8 |
28 |
8
7 |
40 |
50 |
31.3 |
|
|
|
|
|
