 W-30(Helical Worm motor) |
 |
|

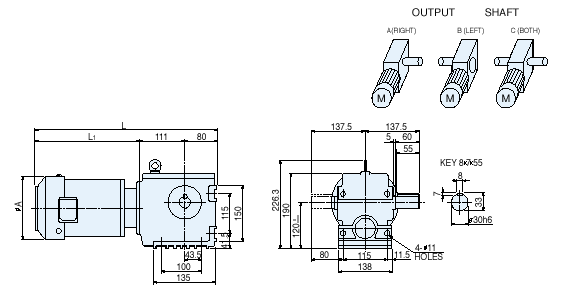

 HORIZONTAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W30 |
0.4kw(1/2HP) |
1/75,90,120,150,180 |
234 |
425 |
160 |
27 |
|
0.75kw(1HP) |
1/40,50,60 |
269 |
460 |
160 |
32 |
|
1.5kw(2HP) |
1/10,20,30 |
309 |
500 |
192 |
28 |
|
|

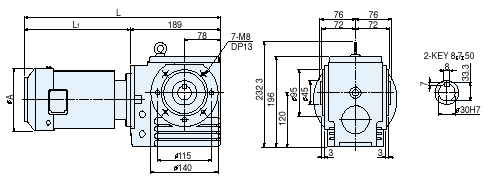

| HOLLOW SHAFT TYPE |
|
 |
|

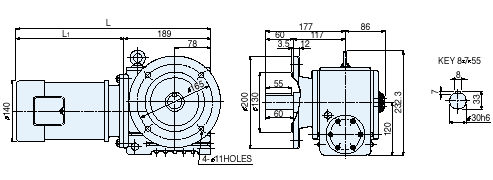

| VERTICAL TYPE |
|
 |
|
|
TYPE |
OUTPUT |
RATION |
L1 |
L |
ØA |
WEIGHT(KG) |
|
W30 |
0.4kw(1/2HP) |
1/75,90,120,150,180 |
234 |
418 |
145 |
30 |
|
0.75kw(1HP) |
1/40,50,60 |
269 |
453 |
158 |
35 |
|
1.5kw(2HP) |
1/10,20,30 |
309 |
493 |
192 |
41 |
|
|
|
| W-30(Line power) |
|
| HORIZONTAL TYPE |
|
 |
|
|
TYPE |
DIMENSION(mm) |
|
a |
a2
a3 |
b1
b2 |
e |
f2
f3 |
h |
i |
L |
L1 |
O |
p1
p2 |
q1
q2 |
|
W30 |
115 |
43.5
36.5 |
100
115 |
138 |
135
140 |
120 |
80 |
306 |
115 |
137.5 |
226.3
190 |
111
80 |
|
|
|
TYPE |
DIMENSION(mm) |
|
s
w |
d |
t
u |
qk |
k |
dl |
d1 |
t1
u1 |
qk1 |
k1 |
dl1 |
|
W30 |
11
5 |
30 |
8
7 |
55 |
60 |
33 |
16 |
5
5 |
36 |
40 |
18.3 |
|
|
| VERTICAL TYPE |
|
 |
|
TYPE |
DIMENSION(mm) |
a1
a2 |
b |
c |
d |
f1
f2 |
h |
i1
i2 |
L |
L1 |
O |
p1 |
p2 |
W30 |
189
78 |
130 |
200 |
165 |
12
3.5 |
120 |
196
232.3 |
304 |
115 |
86 |
117 |
177 |
|
|
TYPE |
DIMENSION(mm) |
r |
s |
t
u |
dl |
k |
qk |
s1 |
t1
u1 |
dl1 |
k1 |
qk1 |
W30 |
11 |
30 |
8
7 |
55 |
60 |
33.3 |
16 |
5
5 |
36 |
40 |
18.3 |
|
|
|
|
|
